Switching Lab 13 : Etherchannel PagP



 LAB 13


Untuk lab ini menggunakan Pagp Etherchannel, PagP ini etherchannel milik cisco jadi di vendor lain tidak ada. Mode yang bisa digunakan untuk membentuk etherchannel PagP ada 2 yaitu :
- Desirable
- Auto

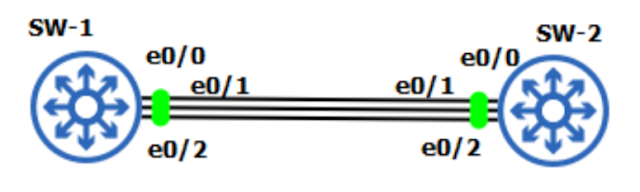

Berikut tabel yang bisa dilihat untuk membantu memahami lab ini.

SW1
SW1(config)#interface range e0/0-2
SW1(config-if-range)#channel-group 1 mode desirable
 Creating a port-channel interface Port-channel 1
SW1(config-if-range)#interface port-channel 1
SW1(config-if)#switchport trunk encapsulation dot1q
SW1(config-if)#switchport mode trunk
SW1(config-if)#exit

Verifikasi

SW1
SW1#show etherchannel summary
Flags: D - down P - bundled in port-channel
 I - stand-alone s - suspended
 H - Hot-standby (LACP only)
 R - Layer3 S - Layer2
 U - in use N - not in use, no aggregation
 f - failed to allocate aggregator
 M - not in use, minimum links not met
 m - not in use, port not aggregated due to minimum links not met
 u - unsuitable for bundling
 w - waiting to be aggregated
 d - default port
 A - formed by Auto LAG
Number of channel-groups in use: 1 Number of aggregators: 1
Group Port-channel Protocol Ports
------+-------------+-----------+------------------------------------------- ----
1 Po1(SU) PAgP Et0/0(P) Et0/1(P) Et0/2(P)

SW1#show interface trunk

Port Mode Encapsulation Status Native vlan Po1

on..................................................... 802.1q trunking 1

Port Vlans allowed on trunk Po1 1-4094

Port Vlans allowed and active in management

domain Po1 1

Port Vlans in spanning tree forwarding state and not pruned

Po1 1

SW1#show spanning-tree vlan 1
 VLAN0001
 Spanning tree enabled protocol ieee
 Root ID Priority 32769
 Address aabb.cc00.0100
 This bridge is the root
 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
Bridge ID Priority 32769 (priority 32768 sys-id-ext 1)
 Address aabb.cc00.0100
 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
 Aging Time 300 sec Interface Role Sts Cost Prio.Nbr Type
------------------- ---- --- --------- -------- ---------------------------- ----
Po1 Desg FWD 47.................................. 128.65 P2p
